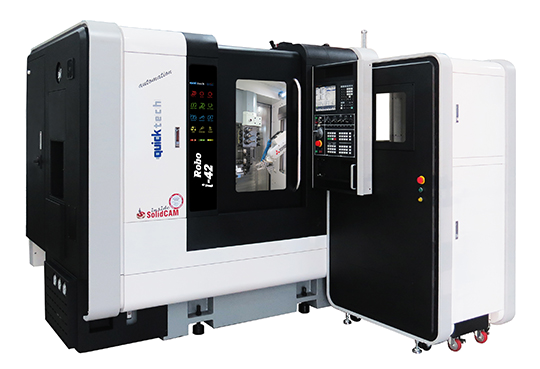

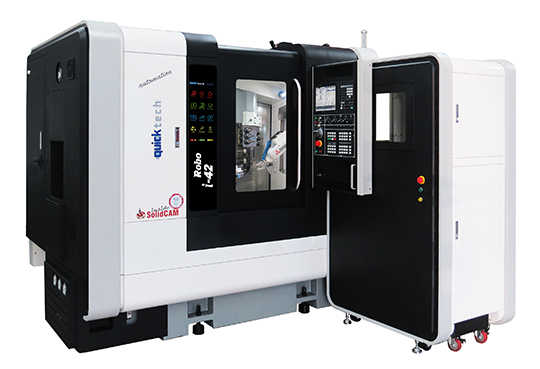

This 4 axis lathe with C-axis and live tooling provides the added advantage of robotic loading for unmanned chucking operations.
This machine is a modified version of the IT-42 with internal integration of a Mitsubishi 6 axis articulated robot. This requires no additional floor space, and is positioned so it will not hinder the machine operator while setting the machine or operating the Mitsubishi M70 control system.
This innovative series stands out as an automatic lathe.

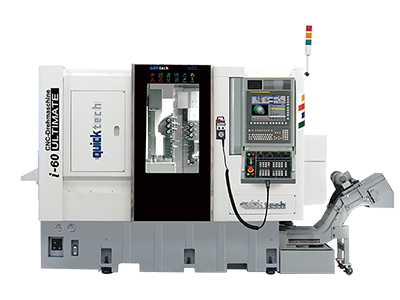

The i-60 Ultimate designation comprises of 10 axis and 4 spindles which includes a sub spindle with both X and Z positioning. This also marks the integration of the driven tools having a powerful B-axis milling for simultaneous and efficient machining. Due to this enhancement, the tools application becomes faster and more flexible for complicated parts.

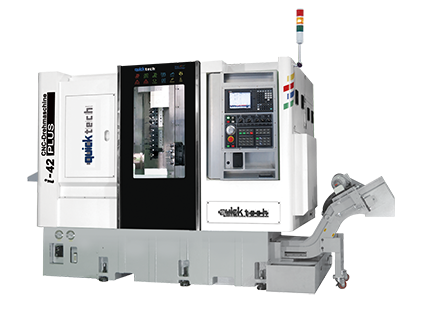

The series is a combination of cost effective and highly productive for complex work pieces.
Not only having 30 tools to make it possible to process complex work pieces from inside, outside and outline, it also marks the integration of the driven tools having a powerful B-axis milling for simultaneous and efficient machining. Due to this enhancement, the tools application becomes faster and more flexible for sophisticated parts. The great tool arrangement and big work area make this an outstanding, all-purpose machine.

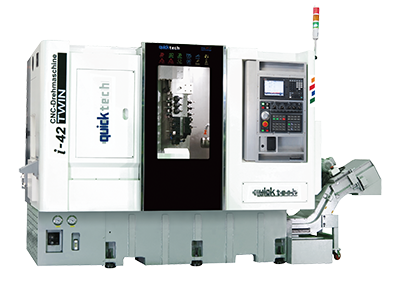

This CNC turning machine is capable of running two NC programs simultaneously.
A total of 18 tools (6 of them powered) is designed to work on complex work pieces.

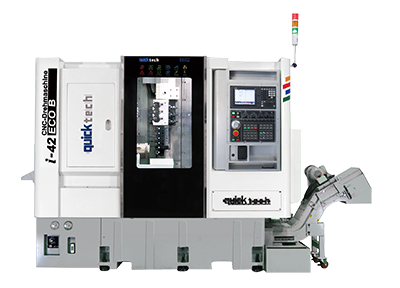

This gang tooling lathe is an affordable alternative to a turret type, C-axis lathe. The tooling system comprises of 6 turning, 4 boring and 6 live milling tools giving a capacity of 16 tools.
Its unique design allows for rapid chip to chip times, which will generally out-perform turret type machines, enabling a reduction in cycle times.
Its rigid design allows heavy duty cutting to be performed, and the 6 live tooling spindles with both C-axis and Y-axis can complete the most complex of work pieces in one operation.
